Short Stem Options

Humeral Component Cemented & Cementless
Size: 10-12-14
The Hemilock humeral proximal component is manufactured from titanium and available in diameters of 10-12 and 14 mm in both cemented and cementless forms. The cementless humeral component has a plasma sprayed commercially pure titanium and Hydroxyapatite coating. The proximal component also has suture holes on it.

Epiphyseal Humeral Component Cemented & Cementless
Size: 27-30-33-36-38
The epiphyseal humeral component is manufactured by titanium and available in diameters Ø27-30-33-36-38 in both cemented and cementless forms. The component has a plasma sprayed commercially pure titanium and HA coating . At also has suture holes on it.

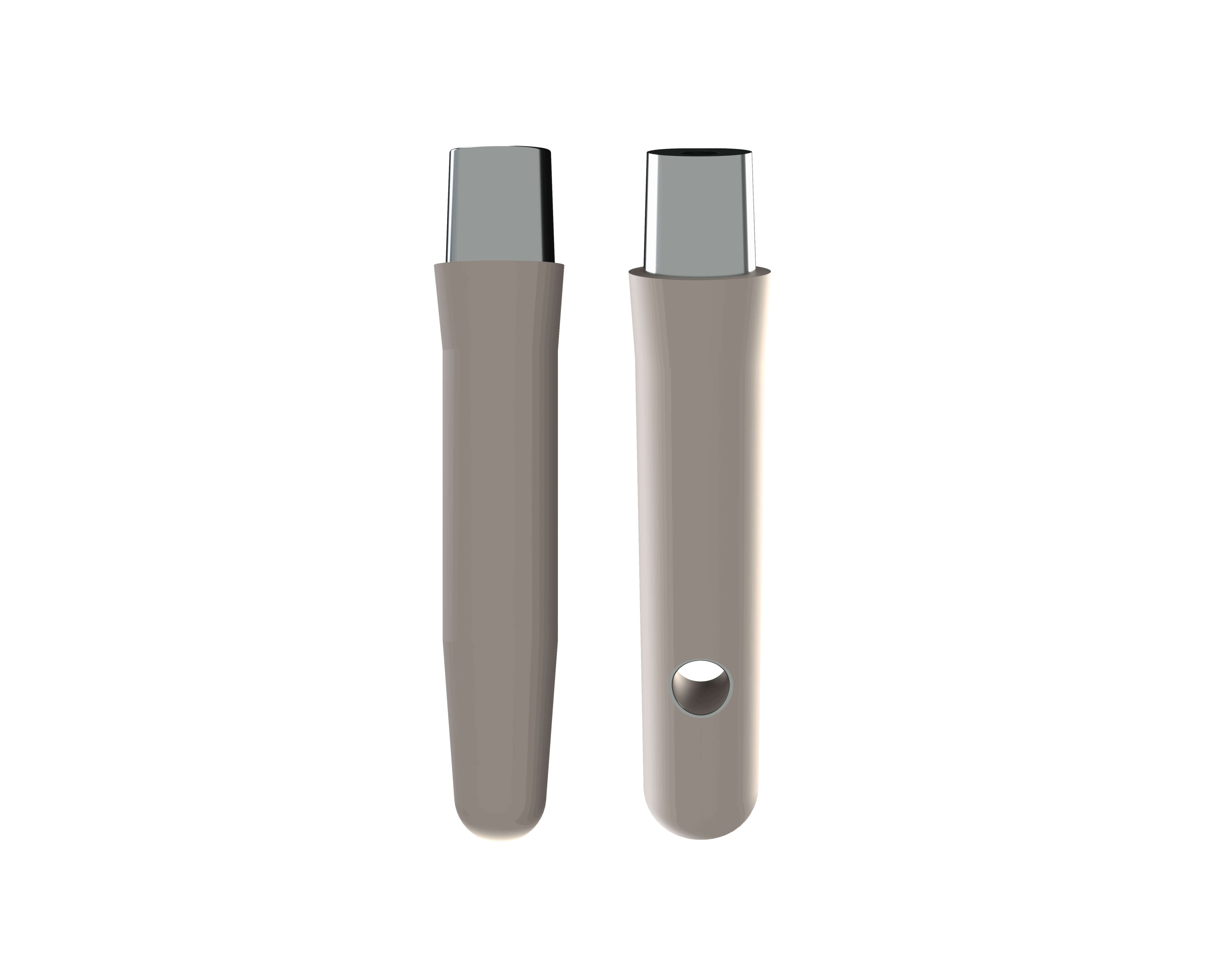

Humeral Stem Cemented & Cementless
Ø 8-9-10-11-12-13-14-15 L:95mm-120mm-160mm-180mm-200mm
There are two types of distal humeral stems in the system. Cemented and cementless forms. The cemented distal stem is round and has a grit blasted surface and available in diameters 8,9,10,11,12,13. The cementless distal stem is available in diameters 8,9,10,11,12,13,14,15. The distal end of the cementless humeral stem is cylindrical with a grit blasted surface and two unthreaded screw holes in the anterior / posterior direction for fixation using bone screws. The both cemented and cementless distal stems has a length options of 50, 120, 160, 180 and 200 mm.

Connection Screw Standard
Size, Ø4,5mm
The titianium alloy connection screw of the humeral component and the distal stem has a standard size and the diameter is Ø4,5 mm.

3/4 Peg Glenoid PE
Size: XS-S-M-L
The ¾ pegged glenoids are manufactured from UHMWPE and all cemented for the anatomic surgery options. The system has 4 size options and the x-small and Small sizes have 2 peripheral and one central pegs and the medium and the large sizes have 3 peripheral and 1 central pegs. Color-coded trials and reamers are availeble for all sizes within the system.

Humeral Head Centric & Eccentric
Ø 39-43-46-50 mm
For the hemi and anatomic solutions the system has forged CoCr humeral heads. The humeral heads have 4 sizes 39, 43, 46, and 50. And also have centric and excentric options. The excentric humeral heads are 3 mm out off the center. If you use and excentric humeral head you can easily mark its position by the help of the marks on the trial heads.

Modular Neck
Length: +0 ; +3; +5
The system has 3 different length of titanium modular neck options: +0, +3, and +5. The trials and the definitive modular necks have its own extraction system.

Cortical Screw
18, 20, 22, 24, 26, and 28 mm.
The titanium alloy cortical screw has a diameter of 4.5 mm and is available in six lengths: 18, 20, 22, 24, 26, and 28 mm. It is used to assist in the fixation of cementless humeral stems when needed. The system also includes a distal aiming guide.

Metal Glenoid Baseplate
Ø 24mm. Ti+HA coated
The titanium alloy metal glenoid baseplate has a 24 mm diameter which is one of the smallest in the World. It has a plasma sprayed commercially pure titanium and Hydroxyapatite coating. The post option has a 17mm post that tapers from 7.5mm proximally to 6.5mm distally with the option for an additional +6mm, 8mm and +10mm extension posts. The metal glenoid baseplate has 4 screw holes on it. You can use polyaxial standard screws or locking screws as 10° to the superior hole and 5° to the other 3 holes. Ø24 mm metal glenoid baseplate has stem options as 16,18,20,22,24,26 mm long and it can be used 6,8,10 mm post extentions or has central screw options as the lengths 8,10,12,14,16,18 mm.

Glonosphere Centric & Eccentric
Size: Ø36 & Ø40mm
The CoCr alloy Glenosphere is available in 36 and 40mm diameter sizes in centered and eccentric styles. The eccentric glenospheres are designed to be offset from the center of the glenoid baseplate. All glenospheres are slightly lateralized of 3.5mm corresponding to 10° of tilt. The curvature of the glenosphere extends 10° beyond the equator of a hemisphere. This additional articular surface lateralizes the center of rotation to help reduce the potential for scapular notching by the humeral cup.

Locking/Standard Screw
Size, Ø4,5mm L.20-25-30-35-40
The titanium alloy glenoid screw has a 4,5 mm diameter and is available in 5 lengths: 20, 25, 30, 35, and 40 mm. It helps for the fixation of the 24 mm diameter metal glenoid baseplate. The screw has two options: standard and locking. All the screw types: standard or locking, are polyaxial and allows fixation at any desired angle up to 12 degrees. The locking screws also allow locking at desired angle up to 12 degrees. When starting the fixation, it is recommended to first compress with standard screws in the anterior and posterior directions, and then use standard or locking screws in the superior and inferior directions.

Humeral Cup
UHMWPE Ø36 & Ø40mm L. +3,+6,+9,+12,+15,+18mm
The metal back / spacer has two lenghts: +0 and +9 mm. For primary cases you can use the +0 mm to build +3, +6, and +9 mm heights or you can choose +9 mm spacer to build additional heights of +12, +15, and +18 mm for humeral liner.

Metaphyseal Component
UHMWPE Ø36 & Ø40mm L. +3,+6,+9,+12,+15,+18mm
The metal back / spacer has two lenghts: +0 and +9 mm. For primary cases you can use the +0 mm to build +3, +6, and +9 mm heights or you can choose +9 mm spacer to build additional heights of +12, +15, and +18 mm for humeral liner.

Glenosphere Screw
Size, Ø4,5mm
The titianium alloy connection screw of the humeral component and the distal stem has a standard size and the diameter is Ø4,5 mm.
